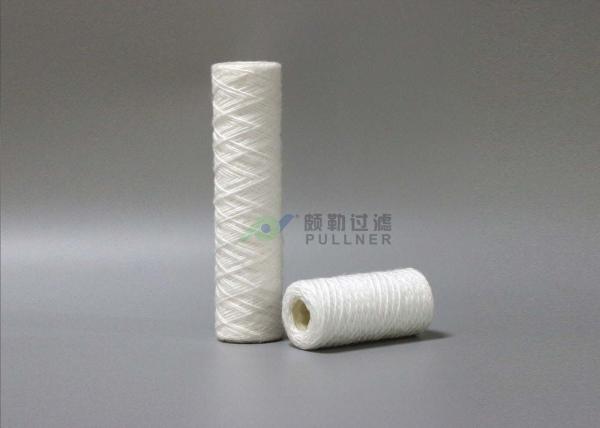

10" Food and Beverage String Wound Filter Cartridge 5 Micron RO Pre-filters
Applications
* Pharmaceutical industry: Pre-filtration of drugs, distilled water, biological products, various antibiotics, etc.
* Electronics industry: Filtration of industrial water such as electronics, microelectronics, and semiconductors.
* Food and beverage: Beer, wine, soft drinks, dairy products, bottled water, fruit wine, juice, syrup, cooking oil, etc
Products Description
1. PP String Wound Filter Cartridge can be used in acid and alkali, chemical solution and other non-organic solvent; Suggest Max. operating temperature ≤60℃.
2. Cotton yarn fiber filter with Stainless steel support core, can be used in organic solvents, oils, water, alkaline solution, pharmaceuticals, beverages, etc.
3. Glass fiber has a wide range of chemical compatibility, can be applied to filter special chemicals and corrosive liquid.
Features and Benefits
* PP support has good heat resistance, suitable PH 1-13;
* Suitable for high solid content and high viscosity material liquid solid-liquid separation;
* Stainless steel support has good heat resistance, maximum operating temperature 120 ℃;
* Choice different materials configured according to the process conditions to meet the needs of a variety of liquid filtration.
Performance Specifications
|
OD (Outside Diameter)
|
60-63mm,115mm; (Customized on request)
|
|
ID (Inside Diameter)
|
28mm,30mm
|
|
Length
|
5 ", 10 ", 20 ", 30 ", 40 "
|
|
Micron
|
1um, 5um, 10um, 20um, 30um, 50um, 75um, 100um.
|
|
Filter Medium
|
Polypropylene(PP), Cotton, Glass Fiber
|
|
Center Core
|
Polypropylene(PP), Stainless steel 304/316L
|
